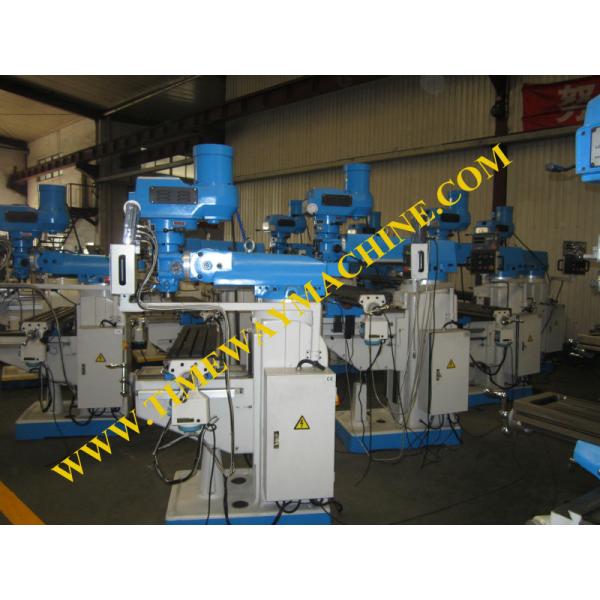

Vertical Turret Milling Machine
Vertical Turret Milling Machine
| Model | Unit | M230A | M230B | M250 | M250A | M250B | M250U | M250C | M250D | M300 | M300A | M330 | M330A |
| Table size | mm | 230x1067 | 254x1270 | 250x1270 | 254x1270 | 305x1370 | 330x1370 |
| 230x1246 | 254x1370 | 254x1370 | 305x1500 | 330x1500 |
| Longitudianl travel | mm | 650 / 840 | 850 / 950 | 770 | 850 / 950 | 870 / 1000 | 840 / 1000 |
| Cross travel | mm | 305 | 420 | 400 | 420 | 380 | 368 |
| Vertical travel | mm | 400 | 420 | 400 | 420 | 430 | 450 |
| T-slot No. and size | mm | 3 x 16 |
| Ram travel | mm | 312 | 470 | 500 |
| Distance from spindle to table | mm | 0-415 | 0-405 | 0-350 | 0-450 |
| Spindle hole taper | | Standard: R8 Optional : ISO30/ISO40 | Standard: ISO40 |
| Spindle travel | mm | 127 mm |
| Spindle speed | r.p.m | Standard: step 16 speed 50HZ: 65-4500 60HZ: 80-5440 |
| Optional: Variable speed 65-4500 | Optional: Variable speed: 65-3750 |
| Auto. quill feed | mm/r | Three steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15(0.006″) | Three Steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15 (0.006″) |
| Spindle Motor | kw/HP | 2.25kw / 3HP | 3.75kw / 5HP | 3.75kw / 5HP |
| Head Swivel | | 90° |
| Head Tilting | | 45° | Fix | 45° | Fix | 45° | Fix |
| Dimension of package | One | mm | 1400x1476x2030 | 1516x1550x2080 | 1566x1650x2080 | 1800x2016x2180 |
| Two | mm | 1450x1570x2080 | 1650x1790x2170 | 1720x1800x2175 | 1800x2200x2180 |
| Three | mm | 1450x2180x2080 | 1650x2285x2235 | - | - |
| Gross Weight | kg | 1100 | 1160 | 1550 | 1380 | 1420 | 1650 | 1590 | 1590 | 1700 | 1750 | 2300 | 2350 |
Features:
M230A:
*Double 55°dovetail guide way is adopted on Both Y and Z axis;
*Adopted strengthen rib on both sides of the column;
*The work table surface and 3 axis guide way are hardened and precision ground.
M230B:
*Double 55°dovetail guide way is adopted on Z axis, and rectangular guide way on Y axis;
*Adopted strengthen rib on both sides of the column;
*The work table surface and 3 axis guide way are hardened and precision ground.
M250A:
*Double 55°dovetail guide way is adopted on Both Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
*The work table surface and 3 axis guide way are hardened and precision ground.
M250B:
*Double 55°dovetail guide way is adopted on Z axis, and rectangular guide way on Y axis;
*The guide way on saddle is lined with TF wearable material;
*The work table surface and 3 axis guide way are hardened and precision ground.
M250:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material.
M250C:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
* 5HP milling head motor and quill diameter is 100mm;
*Fixed structure is used to connect the mill head without adapter;
M250D:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
* 5HP milling head motor and quill diameter is 100mm.
M250U:
*Rectangular guide ways on Y and Z axis;
*X, Y axis adopt auto feed gear box; Feed motor: 250w; Feed rate: 15, 23, 33, 48, 78, 114, 166, 257;
*The work table surface and 3 axis guide way are hardened and precision ground.
M300:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
* 5HP milling head motor and quill diameter is 100mm;
*The work table surface and 3 axis guide way are hardened and precision ground;
*Z axis adopts high speed lifting motor.
M300A:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
* 5HP milling head motor and quill diameter is 100mm;
*The work table surface and 3 axis guide way are hardened and precision ground;
*Z axis adopts high speed lifting motor;
*Fixed structure is used to connect the mill head without adapter;
M330:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
* 5HP milling head motor and quill diameter is 100mm;
*The work table surface and 3 axis guide way are hardened and precision ground;
*Z axis adopts high speed lifting motor.
* Super saddle structure.
M330A:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
* 5HP milling head motor and quill diameter is 100mm;
*The work table surface and 3 axis guide way are hardened and precision ground;
*Z axis adopts high speed lifting motor.
* Super saddle structure;
*Fixed structure is used to connect the mill head without adapter.
***Standard accessories:
Draw bar, Electric box, Working light, Hand oil pump, Tool & tool box
***Optional accessories:
Digital readout system(DRO), Machine vise, Power feed unit, Gear box power feed, Clamping kits, ISO40 collet chuck, R8 collet chuck, Oil collecting plate, Plastic splash guard, Cooling system
