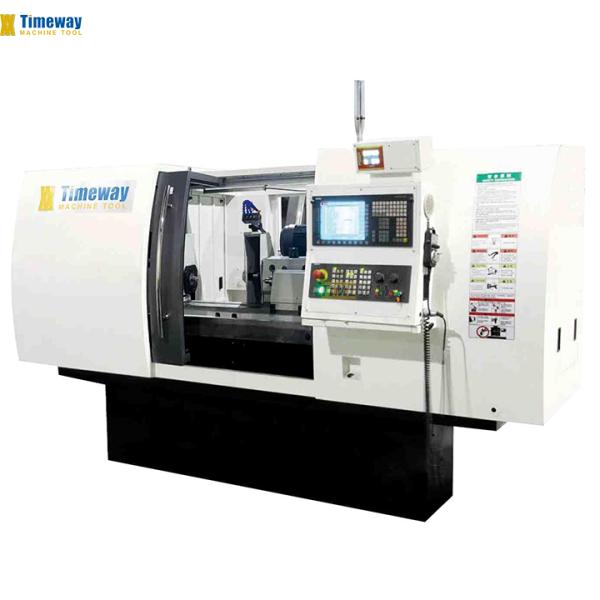

High Precision CNC Cylindrical Grinding Machine Min. Set Unit 0.0001 mm 500mm Distance

Name: High Precision CNC Cylindrical Grinding Machine Min Set Unit 00001 mm 500mm Distance
Brand: TIMEWAY
Price: 15 USD

Quality High Precision CNC Cylindrical Grinding Machine Min. Set Unit 0.0001 mm 500mm Distance for sale

Grinding Diameter(Outer)(mm) : 200

Grinding Diameter(Inner)(mm) : 8

Max. Weight of Workpiece(kg) : 50

Center Height (mm) : 135

Wheel Size(mm) : 400X50X203

Wheel Speed (rpm) : 60

Surface Roughness(μm) : 0.04

Year : NEW

Place of Origin : QINGDAO

Brand Name : TIMEWAY

Voltage : 220 V/380 V

Dimension(L*W*H) : 340x240x220

Weight (KG) : 5500

Power (kW) : 1.1

Key Selling Points : High Precision

Warranty : 1 Year

Showroom Location : Kenya, Egypt, South Korea, Italy, Ukraine

Applicable Industries : Manufacturing Plant, Machinery Repair Shops

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Engine, PLC

Condition : New

CNC or Not : CNC

Distance between centers : 500 mm

Center height : 135 mm

Dia. ground (O.D) : 8-200 mm

Max. weight of workpiece : 50 kg

Workhead spindle taper : 60-600 r/min

Wheel peripheral velocity : 35 m/s

Min. set unit : 0.0001 mm

Tailstock quill travel : MT4

Wheelhead motor power : 5.5 kw

Roundness : 0.5 um

Price : $15,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

High Precision CNC Cylindrical Grinding Machine Min. Set Unit 0.0001 mm 500mm Distance

* The table (Z-axis) guide adopts open unloading hydrostatic guide structure, and the transverse feed (X-axis) adopts Swiss N/O linear guide structure. It adopts high precision roller screw drive, zero clearance, low speed and no creep.

* The spindle of the grinding whel adopts large taper, four oil wedge, automatic adjustable hydro-dynamic pressure bearing, the workhead adopts hydro-static spindle center-fixed grinding structure, the tailstock adopts dense bead sleeve or linear bearing structure, the whole machine has strong rigidity and high precision.

* The machine bed adopts double-layer structure (finite element analysis), the casting with special ratio is cast in one piece, and the combined surface is manually precision scraped, thus the thermal deformation is stable and the accuracy is stable for a long time. Among them, GDK-M series adopts mineral bed structure, no deformation, and the accuracy is more durable and stable.

SPECIFICATION	UNIT	GK200-1
Distance between centers	mm	500/750
Center height	mm	135
Dia. ground (O.D)	mm	8-200
Max. weight of workpiece	kg	50
Workhead spindle taper	/	MT4
Workhead spindle speed (stepless)	r/min	60-600
Max. dimension of wheel (O.DxWxI.D)	mm	400x50x203
Wheel peripheral velocity	m/s	35
Min. set unit	mm	0.0001
Max. swiveling angle of table (Clockwise)	°	5° (500), 3° (750)
Max. swiveling angle of table (Anticlockwise)	°	9° (500), 6° (750)
Tailstock quill taper	/	MT4
Tailstock quill travel	mm	30
CNC system	/	SIMENS 828D, FANUC 0i-TF
Wheelhead motor power	kw	5.5
Workhead motor power	kw	1.1
Roundness	um	0.5
Cylindricity	um	2 (500), 3 (750)
Roughness	um	Ra0.04
Gross weight	tons	5.5/6
Packing size (LxWxH)	cm	340/400x240x220

The table (Z-axis) guide adopts open unloading hydrostatic guide structure, and the transverse feed (X-axis) adopts Swiss N/O linear guide structure. It adopts high precision roller screw drive, zero clearance, low speed and no creep.

The machine bed adopts double-layer structure (finite element analysis), the casting with special ratio is cast in one piece, and the combined surface is manually precision scraped, thus the thermal deformation is stable and the accuracy is stable for a long time. Among them, GDK-M series adopts mineral bed structure, no deformation, and the accuracy is more durable and stable.

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
