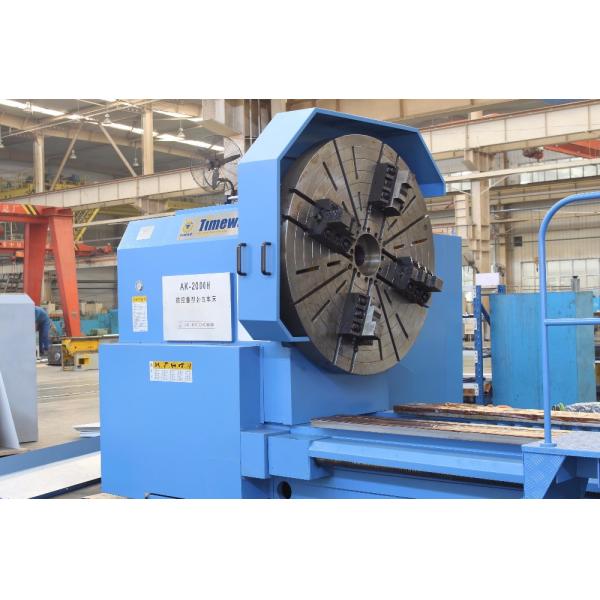

Timeway CNC Heavy Duty Horizontal Lathe Large Loading Capacity and 130mm Spindle Bore

Name: Timeway CNC Heavy Duty Horizontal Lathe Large Loading Capacity and 130mm Spindle Bore
Brand: Timac
Price: 55 USD

Type : Horizontal

Max. Length of Workpiece (mm) : 3000

Structure : Flat Bed Lathe

Machining Capacity : Heavy Duty

Width of bed (mm) : 0 mm

Spindle Motor Power(kW) : 30

No. of Spindles : Twin

Number of Axes : 2

Travel (X Axis)(mm) : 700 mm

Travel (Z Axis)(mm) : 3000 mm

Positioning Accuracy (mm) : ±0.001

Repeatability (X/Y/Z) (mm) : ±0.008

Place of Origin : Henan, China

Dimension(L*W*H) : 6520*2665*2680

Brand Name : Timac

Model Number : AK-1400C

Voltage : 220v-460v

Tool Post Stations : 8

Weight (KG) : 13500

Warranty : 1 Year

Key Selling Points : Automatic

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max. swing over bed : 1400mm

Max.. swing over cross slide : 1010mm

Distance between centers : 3000/4000/5000/6000/8000/10000/12000/-mm

Max. turning length : 2800/3800/4800/5800/7800/9800/11800/-mm

Bed width : 970mm

Loading capacity : 1000kg

Spindle bore : 130mm

Cross travel (X) : 700mm

CNC system : FANUC/GSK/SIEMENS

Main motor power : 30kw

Condition : New

Spindle Bore(mm) : 130

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Showroom Location : Canada, Turkey, Germany, Saudi Arabia, Russia

Marketing Type : Hot Product 2019

Core Components : Motor, Pump

Year : 2023

Max. Spindle Speed (r.p.m) : 320 r.p.m

Max. Turned Length (mm) : 2800

Price : $55,000.00/acres >=1 acres

MOQ : 1 set

Contact Now

Product Description

CNC Heavy Duty Horizontal Lathe AK-1400C

Timeway CNC Heavy Duty Horizontal Lathe Large Loading Capacity and 130mm Spindle Bore

Specification

Specification	Unit	AK-1400C
Max. swing over bed	mm	1400
Max.. swing over cross slide	mm	1010
Distance between centers	mm	3000/4000/5000/6000/8000/10000/12000/-
Max. turning length	mm	2800/3800/4800/5800/7800/9800/11800/-
Bed width	mm	970
Loading capacity	kg	1000
Spindle bore	mm	130
Cross travel (X)	mm	700
CNC system	-	FANUC/GSK/SIEMENS
Main motor power	kw	30

Accessories

Standard accessories：

√ FANUC/GSK/SIEMENS CNC system

√ 4-jaw chuck
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Pilot lamp
√ Automatic lubrication pump
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

Optional accessories：

_Steady rest
_Follow rest
_ Roller support
_6/8-station tool-post
_ Air conditioner
_ Chip conveyor
_ Full guard

Details of Accessories:

This is a detailed picture of this machine, you can understand our machine more intuitively.

Company Profile

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Exhibition & Training

This is a picture of clients visiting our company when we hold exhibitions around the world.

Certifications

Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.

FAQ

Q: Why choose TIMEWAY MACHINE?

A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
